TUCSON ' 04 Aluminium Hyundai Radiator OEM 25310 - 2E100 / 2E400 / 2E800
About Product

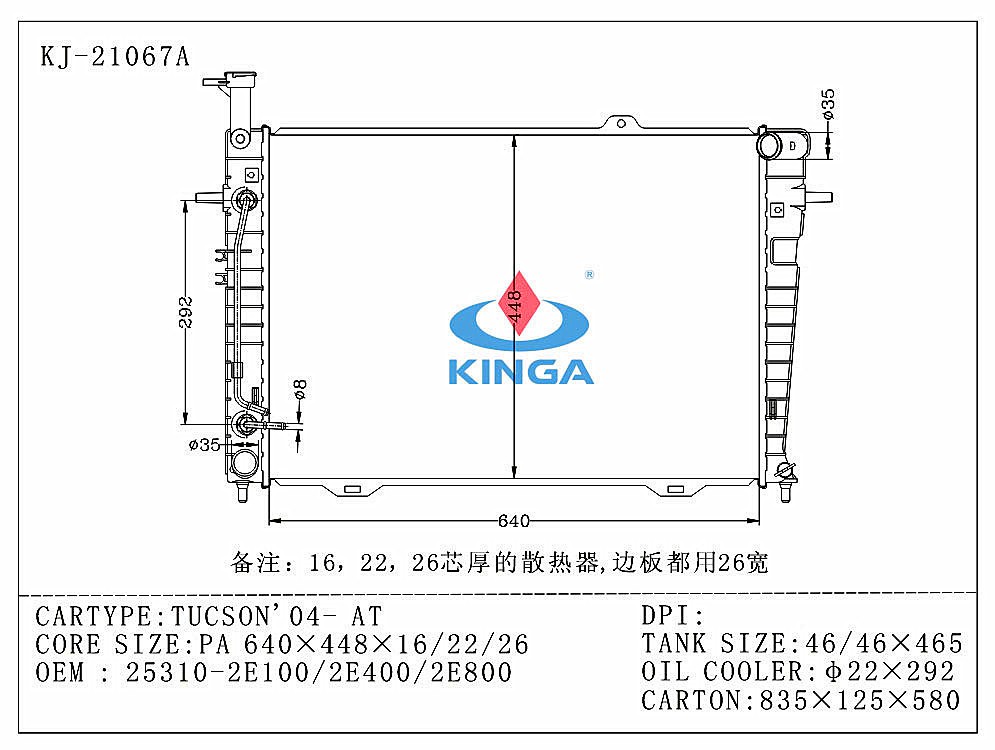

Manufacturer Part Number : KJ - 21067A - PA16 / 22 / 26
Core Size : PA 640 * 448 * 16 / 22 / 26 mm
Tank Size : 46 / 46 * 465 mm
Oil Cooler : Φ 22 * 292 mm
Quality Control : ISO9001 : 2000 , TS16949 certification
OEM : 25310 - 2E100 / 2E400 / 2E800
Core Material : Aluminium
Carton Size : 845 * 135 * 595 mm
Warranty : 1 Year
General Radiator Structure
| Brazed |
| 1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
| 2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
| 3. Inlet Pipe | 10. Fin | 17. Water switch |
| 4. Top Tank | 11. Tube | 18. Bottom Tank |
| 5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
| 6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
| 7. Overflow Pipe | 14. Clip | |
Our Advantages
1. Delivery : 15-20 days for one container .
2. Profession: Over 20 years experience technical and sales support team can offer you the best service .
3. Efficiency : Any inquiry or email will be replied within 24 hours .
4. Guaranty : Strict quality control through our quality control team , one year warranty against BL date ,
any leakage will replace or return by money .
5. High quality and competitive price : We are using high quality materials , we have advanced production
equipment , strict requirements for production , good price .
Various of Radiators Supply
| Peugeot 307 | KJ - 50012 - PA16 / 22 / 26 | PA16 / 22 / 26 MT |
| Hyundai KIA PICANTO ' 10 | KJ - 21152A - PA16 / 26 | PA16 / 26 MT |
| Suzuki VITARA ' 88 - 97 TA01 G16A | KJ - 18019A - PA16 / 26 | PA16 / 26 AT |
| Mitsubishi PICKUP L200 ' 98 | KJ - 14094 - PA16 / 26 / 32 / 36 | PA16 / 26 / 32 / 36 MT |
| Toyota COROLLA 01-04 ZZE122 | KJ - 12165 - PA16 / 26 | PA16 / 26/ AT |
Please Pay Attention
1. Wators , water to water injection in full , on the water to the engine cylinder body of the switch
is turned on , the water out , again close , so as to avoid blisters .
2. In the process of installation radiator , please do not damage the scattered tropical ( film ) and the
radiator , bruised to ensure the cooling capacity and seal .
3. In the winter to prevent ice core fracture phenomenon , such as long - term parking or indirectly ,
should be on the water tank cover and switch , all the water out .
4. Users according to actual situation should be between 1 to 3 months to completely clean the radiator
core body at a time.When cleaning , along the counter in the direction of the wind side rinse with water .
5. Radiater level gauge should be cleaned once every 3 months or according to actual situation , all the
parts to be removed with warm water and not corrosive detergent to clean .
Car Radiators for Hyundai TUCSON ' 04
How to Find us
| Factory address | Guangcong Road No.18 Conghua economic department area |
| Company name | GuangzhouKinga Auto Parts Industry Manufacture Co.,Ltd |
| Export department Tel | 86 - 20 - 87810068 |
| Tel | 0086 - 13560106402 |
| Fax | 86 - 20 - 87819013 |
| Postal code | 510900 |
| Company Website | http://www.aluminiumcarradiators.com |

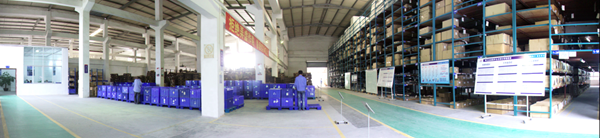

Picture of Store House
More details
Q1 : What ' s your terms of payment ?
A : T/T , 30% deposit before production , the balance before shipment.Western union . Paypal .
Q2 : What ' s your MOQ ?
A : Our MOQ is 30PCS , we can also send same sample for your checking first before you place an order ,
please contact with us for detail .
Q3 : How long is your delivery time ?
A : In usual , our delivery time is 20 - 30 days for radiator , it need 25 - 40 days if meet busy season .
Please feel free to contact us for any question ! Join us , this is a new beginning of the journey , you will
feel the most efficient service , best quality and excellent reputation !
